Vol. 3 No. 3 (2025): SJESR - September 2025
Articles

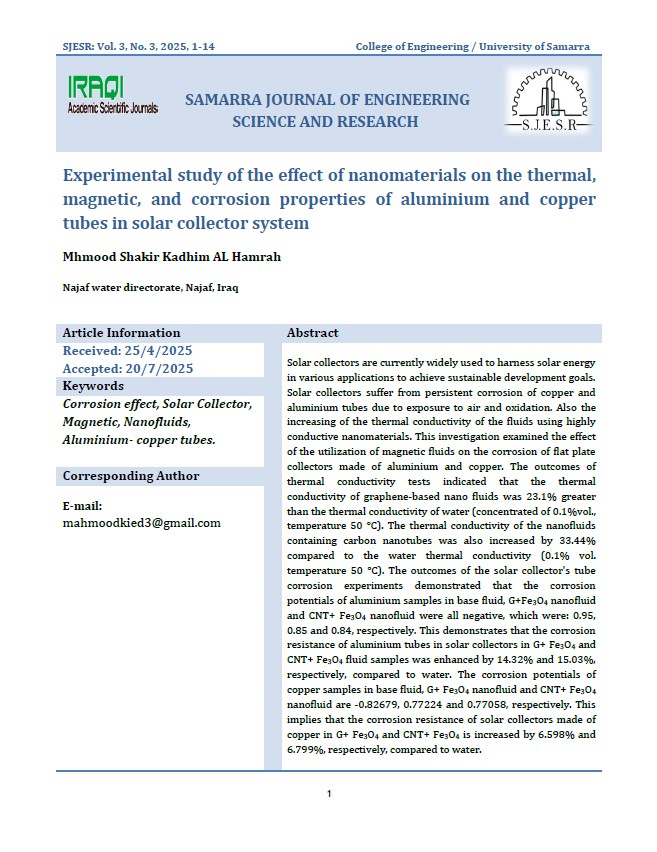

Experimental study of the effect of nanomaterials on the thermal, magnetic, and corrosion properties of aluminium and copper tubes in solar collector system

PDF
Mhmood Shakir Kadhim AL Hamrah
https://orcid.org/0009-0005-7990-8920 Najaf water directorate – manager of the Najaf central water plane

Bio

Published 2025-09-30

Keywords

  • Array,
  • Array,
  • Array,
  • Array,
  • Array

Copyright (c) 2025 Samarra Journal of Engineering Science and Research

Creative Commons License

This work is licensed under a Creative Commons Attribution 4.0 International License.

How to Cite

Experimental study of the effect of nanomaterials on the thermal, magnetic, and corrosion properties of aluminium and copper tubes in solar collector system. (2025). Samarra Journal of Engineering Science and Research, 3(3), 1-14. https://doi.org/10.65115/m0amq839

Abstract

Solar collectors are currently widely used to harness solar energy in various applications to achieve sustainable development goals. Solar collectors suffer from persistent corrosion of copper and aluminium tubes due to exposure to air and oxidation. Also the increasing of the thermal conductivity of the fluids using highly conductive nanomaterials. This investigation examined the effect of the utilization of magnetic fluids on the corrosion of flat plate collectors made of aluminium and copper. The outcomes of thermal conductivity tests indicated that the thermal conductivity of graphene-based nano fluids was 23.1% greater than the thermal conductivity of water (concentrated of 0.1%vol., temperature 50 °C). The thermal conductivity of the nanofluids containing carbon nanotubes was also increased by 33.44% compared to the water thermal conductivity (0.1% vol. temperature 50 °C). The outcomes of the solar collector's tube corrosion experiments demonstrated that the corrosion potentials of aluminium samples in base fluid, G+Fe3O4 nanofluid and CNT+ Fe3O4 nanofluid were all negative, which were: 0.95, 0.85 and 0.84, respectively. This demonstrates that the corrosion resistance of aluminium tubes in solar collectors in G+ Fe3O4 and CNT+ Fe3O4 fluid samples was enhanced by 14.32% and 15.03%, respectively, compared to water. The corrosion potentials of copper samples in base fluid, G+ Fe3O4 nanofluid and CNT+ Fe3O4 nanofluid are -0.82679, 0.77224 and 0.77058, respectively. This implies that the corrosion resistance of solar collectors made of copper in G+ Fe3O4 and CNT+ Fe3O4 is increased by 6.598% and 6.799%, respectively, compared to water.

PDF

Downloads

Download data is not yet available.

References

  1. [1] Leslie-Pelecky, D. L., & Rieke, R. D. Magnetic properties of nanostructured materials. Chemistry of materials, 8(8), 1770-1783. (1996).
  2. [2] Y. Hwang, J.K. Lee, C.H. Lee, Y.M. Jung, S.I. Cheong, Stability and thermal conductivity characteristics of nanofluids, Thermochim Acta, 455 (2007) 70–74.
  3. [3] Z. Said, A. A. Hachicha, S. Aberoumand, B. A. A. Yousef, E. T. Sayed, and E. Bellos, Recent advances on nanofluids for low to medium temperature solar collectors: energy, exergy, economic analysis and environmental impact, Prog. Energy Combust. Sci., 84 (2021) 100898.
  4. [4] Tan, D., Seng, A.K. Handbook for Solar photovoltaic (PV) systems. Energy Market Authority.Singapore. (2012).
  5. [5] Kalogirou, S. The potential of solar industrial process heat applications. Appl Energy. 337: 61- 76 .(2003).
  6. [6] B. Ghorbani, K. B. Mahyari, M. Mehrpooya, and M.-H. Hamedi, Introducing a hybrid renewable energy system for production of power and fresh water using parabolic trough solar collectors and LNG cold energy recovery, Renew Energy, 148 (2020) 1227–1243.
  7. [7] El-Kassaby, M. M. Monthly and daily optimum tilt angle for south facing solar collectors; theoretical model, experimental and empirical correlations. Solar & wind technology, 5(6), 589-596. (1988).
  8. [8] A. M. Fadhil, J. M. Jalil, and G. A. Bilal, Experimental and numerical investigation of solar air collector with phase change material in column obstruction, J. Energy Storage, 79 (2024) 110066.
  9. [9] Villar, N. M., Lopez, J. C., Muñoz, F. D., García, E. R., & Andrés, A. C. Numerical 3-D heat flux simulations on flat plate solar collectors. Solar energy, 83(7), 1086-1092. (2009).
  10. [10] Otanicar, T. P., Phelan, P. E., Prasher, R. S., Rosengarten, G., & Taylor, R. A. Nanofluid-based direct absorption solar collector. Journal of renewable and sustainable energy, 2(3), 033102. (2010).
  11. [11] Tyagi, H., Phelan, P., & Prasher, R. Predicted efficiency of a low-temperature nanofluid-based direct absorption solar collector. Journal of solar energy engineering, 131(4). (2009).
  12. [12] Y. Xia, X. Lin, Y. Shu, and Z. Cheng, Enhanced thermal performance of a flat-plate solar collector inserted with porous media: A numerical simulation study, Therm. Sci. Eng. Prog., 44 (2023) 102063.
  13. [13] Malekahmadi, O., Kalanter, M., Nouri- Khezrabad, M. Effect of carbon nanotubes on the thermal conductivity enhancement of synthesized hydroxyapatite filled with water for dental applications experimental characterization and numerical study. Journal of Thermal Analysis and Calorimetry, 144, 2109- 2126. (2021).
  14. [14] Q. Xiong, A. Hajjar, B. Alshuraiaan, M. Izadi, S. Altnji, and S. A. Shehzad, State-of-the-art review of nanofluids in solar collectors: A review based on the type of the dispersed nanoparticles, J. Clean. Prod., 310 (2021) 127528.
  15. [15] F. Shahzad., The effect of pressure gradient on MHD flow of a tri-hybrid Newtonian nanofluid in a circular channel, J. Magn. Magn. Mater., 568 (2023) 170320.
  16. [16] L. Qiu, N. Zhu, Y. Feng, E. E. Michaelides, G. Jing, et al., A review of recent advances in thermophysical properties at the nanoscale: From solid state to colloids, Phys Rep, 843 (2020) 1–81.
  17. [17] G. Singh, D. Bandhu Singh, S. Kumar, K. Bharti, and S. Chhabra, A review of inclusion of nanofluids on the attainment of different types of solar collectors, Mater Today Proc, 38 (2021) 153–159.
  18. [18] K. Rafique, Z. Mahmood, H. Alqahtani, and S. M. Eldin, Various nanoparticle shapes and quadratic velocity impacts on entropy generation and MHD flow over a stretching sheet with joule heating, Alexandria Eng. J., 71 (2023) 147–159.
  19. [19] N. Majeed, K. Sultan, and H. Anead, A Practical Study of The Thermal Performance of a Vacuum Tube For Solar Collector Using a Double -Sided Electronic Curtain With Nano-Fluid, Eng. Technol. J., 39 (2021) 1399–1408.
  20. [20] Sami Abed, Samir, Mehdi Sedighi3 and Abbas Ali Diwan, Influence Of Al2O3 Nano Additives On The Viscosity And Thermal Conductivity Of Double Distilled Water, Kufa Journal of Engineering, vol. 14, no. 2,. (2023). pp. 12-23,
  21. [21] Sun, B., Guo, Y., Yang, D., & Li, H. The effect of constant magnetic field on convective heat transfer of Fe3O4/water magnetic nanofluid in horizontal circular tubes. Applied Thermal Engineering, 171, 114920. (2020).
  22. [22] Choi, S. U., & Eastman, J. A. Enhancing thermal conductivity of fluids with nanoparticles (No. ANL/MSD/CP-84938; CONF-951135-29). Argonne National Lab.(ANL), Argonne, IL (United States). (1995).
  23. [23] Batad , S. R., Andhare, D. D., Somvanshi, S. B., Kharat, P. B., More, S. D., & Jadhav, K. M. Preparation and characterisations of magnetic nanofluid of zinc ferrite for hyperthermia. Nanomaterials and Energy, 9(1), 8-13. (2020).
  24. [24] Hussain, S., Alam, M. M., Imran, M., Zouli, N., Aziz, A., Irshad, K., ... & Khan, A. Fe3O4 nanoparticles decorated multi-walled carbon nanotubes based magnetic nanofluid for heat transfer application. Materials Letters, 274, 128043. (2020).
  25. [25] Jang, S. P., & Choi, S. U. Role of Brownian motion in the enhanced thermal conductivity of nanofluids. Applied physics letters, 84(21), 4316-4318. (2004).
  26. [26] Raki, E., Afrand, M., & Abdollahi, A. Influence of magnetic field on boiling heat transfer coefficient of a magnetic nanofluid consisting of cobalt oxide and deionized water in nucleate regime: An experimental study. International Journal of Heat and Mass Transfer, 165, 120669. (2021).
  27. [27] Abdeen, D. H., Atieh, M. A., & Merzougui, B. Corrosion behaviour of 316L stainless steel in CNTs–water nanofluid: effect of temperature. Materials, 14(1), 119. (2020).
